MAX16835 is a current regulated high power LED driver. It can take a wide range of input voltage, also supports dimming via a PWM signal.
This IC is designed and sold by Maxim Integrated, specially for rugged applications.
MAX16835 can be used to drive a single LED or a string of multiple LEDs in series, more details below.
Targeted application market
Clearly this LED driver is targeted to where reliability is preferred over design complexity and cost.
- Automotive Interior: Map, Courtesy, and Cluster Lighting
- Automotive Exterior: Tail Lights
- Warning Lights for Emergency Vehicles
- Navigation and Marine Indicators
- Signage, Gasoline stations
- General lighting
Key Features datasheet of MAX16835
- +6.5V to +40V Operating Range
- Adjustable LED Current (35mA to 350mA)
- ±3.5% Output Current Accuracy
- Integrated Pass Element with Low-Dropout Voltage (0.55V typ)
- Output Short-Circuit Protection
- +5V Regulated Output with 4mA Source Capability
- Thermal Shutdown
- Differential LED Current Sense
- High-Voltage Enable Pin for Dimming Interface
- Low Shutdown Supply Current (35µA typ)
- Low 200mV Current-Sense Reference Reduces Power Losses
- Wave-Shaped Edges Reduce Radiated EMI During PWM Dimming
- Available in Small, Thermally Enhanced, 5mm x 5mm, 16-Pin TQFN Package
- -40°C to +125°C Operating Temperature Range
MAX16835 datasheet PDF > You can find the datasheet here.
Reference circuit diagram

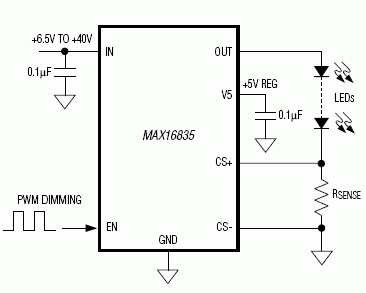

Below the circuit diagram of a sample application, courtesy of Maxim Integrated.
- The EN pin is either connected to input voltage IN or it’s driven by PWM signal from a micro controller.
- 5 volt at 4 mA regulated power can be drawn from the V5 pin for some purpose, like for driving a MCU.
- The current through LED can be calculated by this formula,
It’s the first reference design circuit published on CircuitsDIY, hope you enjoyed it.
