This is the CircuitsDIY workshop. Currently it’s not complete, but a dedicated area for development of the circuits.

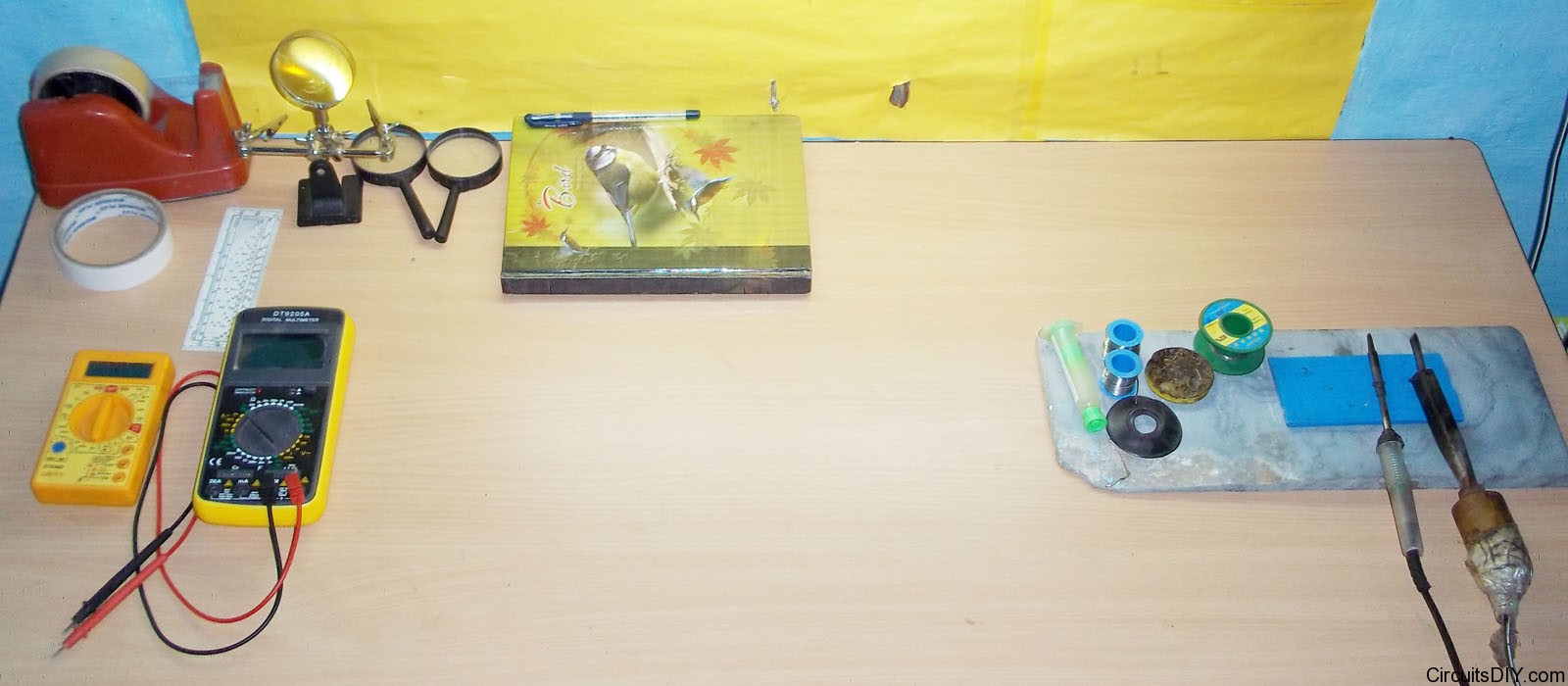

This is the working area. Actually a 4’x2′ woodentop iron table. Here are the soldering tools, multimeters, some magnifying tools, tapes and a pen ad diary to keep notes. In most of the times this table remains full of boards and other junks and I hardly get much space for soldering.

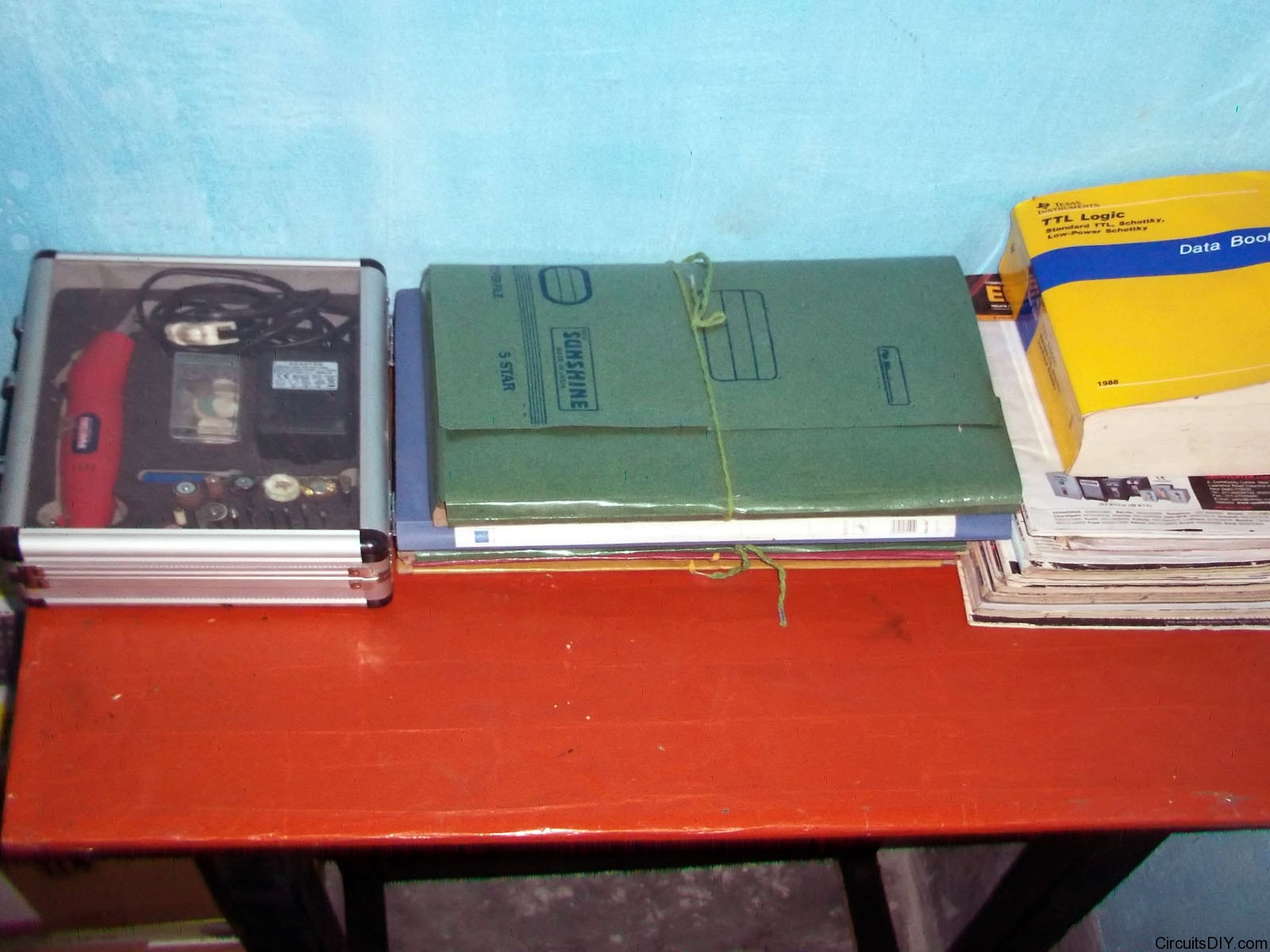

he nest and the last table in the west wall is a small wood table made by
me. Here the paperworks reside in files and folders and in the side you can see my Duratool drill kit and the Logic data book by Texas Instruments above lots of magazines(EFY, EB, etc) .
