Atmega8 based Voltmeter Ammeter for solar application

This project uses the ADC feature of a popular AVR, Atmega8.

 Atmega8 based Voltmeter Ammeter used Component List:
1x Atmega8- Programmed microcontroller
1x 1×16 LCD with Green Backlight
1x High quality Veroboard 2.5?x4?
1x LM7805 5V Voltage Regulator
2x 22uF 50V Electrolytic polarized capacitor
1x 100kpF Ceramic Capacitor
2x 10K multiturn Trimmer Potentiometer
2x 10K 1/4watt Metal Film Resistor (brown, black, orange, golden)
1x 2.2K 1/4watt Metal Film Resistor (red, red, red, golden)
2x 0.25 Ohm / 5W Power Resistor
  Voltmeter Ammeter Technical Specifications:
Voltage Supply: 6V – 30V
Current Consumption: ~ 100mA with LCD backlight
Voltage Input: 0-24V
Voltage Resolution: 100mV/25mV
Current Input: 0-20A
Current Resolution: 800mA/200mA

Short Note on ADC

ADC stands for Analog to Digital converter, it converts analog voltage level to equivalent binary.



Application Principle

Atmega8 has 10bit ADC which can also be used in 8bit mode for better accuracy. In this application, 8bit mode is used, so we have digital reference limits as 0(low) and 255(high).

The analog voltage reference is used at 5V here, so we get 5/256=0.01953125V resolution. We used 10K multiturn potentiometer to fine adjust the voltage divider at ADC0 with appx 5:1 division so we get 25.5V max in voltage input. Simply the ADC data is divided by 10 and we get voltage, and thus the resolution of this voltmeter becomes 100mV.

The current sense resistor used here is a parallel of two 0.25E/5W resistor totaling 0.125E/10W. So, at every Amps, there is 0.125V drop. Our setup can sense 100mV division, and hence the Ammeter resolution is 800mA.

The inetrnal factory default 1Mhz RC clock is used here, and no external crystal or resonator is used.

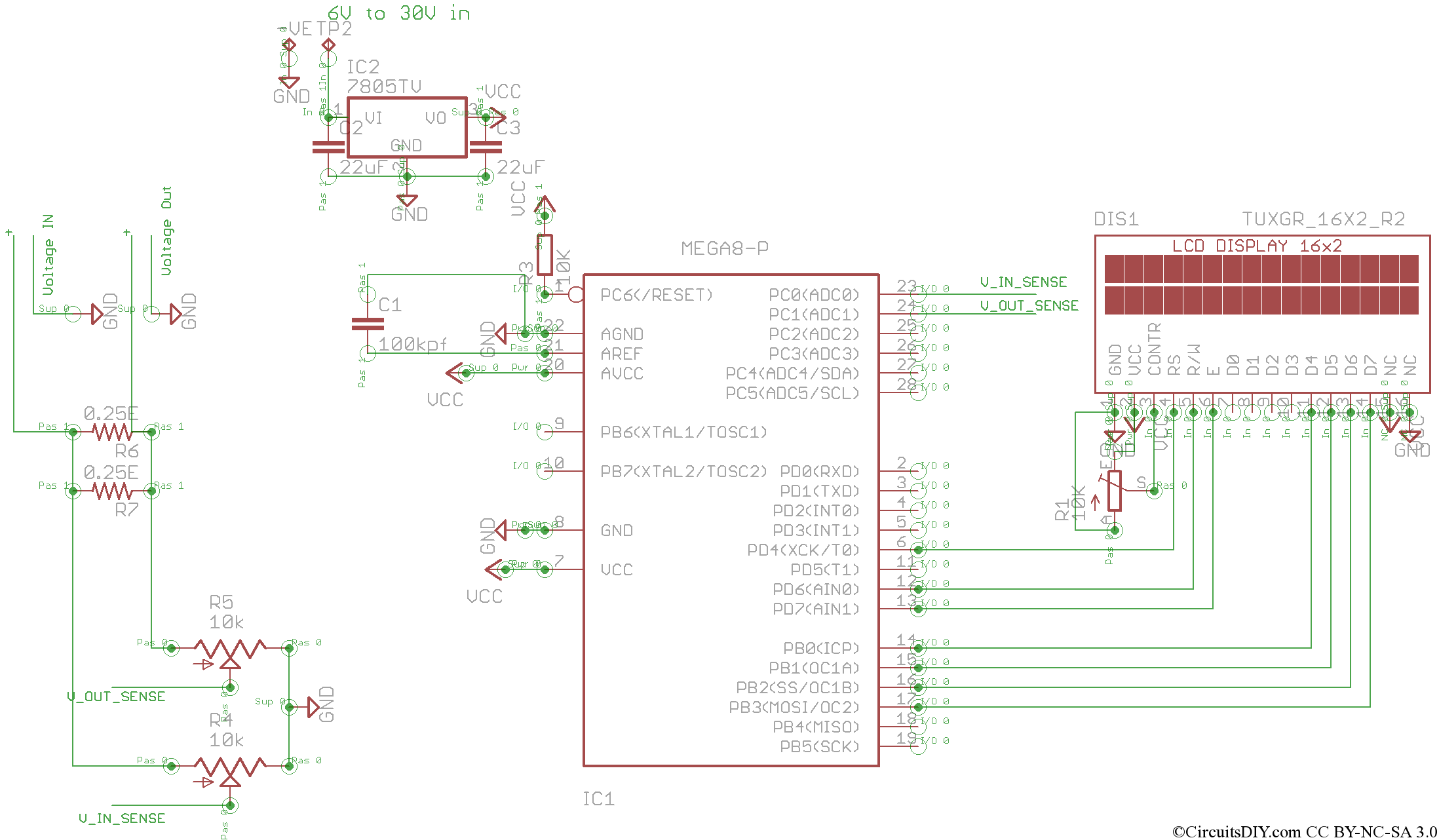

Click on the circuit diagram for high resolution picture.

  1. If the firmware is upgraded with 10bits ADC resolution, then the fine resolution will be 25mV and 200mA.
  2. If current sensing resistor used has higher value, like 1E/10W along with 10bits ADC, then Ammeter resolution will be 25mA.



Code

For developing software, I’ve used “C include file for the HD44780U LCD library (lcd.c)” by “ Peter Fleury “. The code I used is below,

#include <avr/io.h>
#include <util/delay.h>
#include “lcd.h”

uint16_t ReadVoltage(uint16_t channel);
void PrintVoltage(uint16_t voltage);
void PrintAmpere(uint16_t ampere);

int main(void)
{
uint16_t tmp, tmp1;

lcd_init(LCD_DISP_ON);
lcd_clrscr();
//Put some intro text into LCD
lcd_puts(“Volt Amp”);
lcd_gotoxy(0,1);
lcd_puts(” By Arup”);
_delay_ms(1000);
lcd_clrscr();
while(1)
{
ADCSRA = _BV(ADEN) | _BV(ADPS2) | _BV(ADPS0);
tmp=ReadVoltage(0);
lcd_clrscr();
lcd_gotoxy(0,0);
PrintVoltage(tmp);
tmp1=ReadVoltage(1);
lcd_gotoxy(0,1);
if(tmp>tmp1)
{
lcd_puts(“-”);
PrintAmpere((tmp-tmp1)*8);
}
if(tmp1>=tmp)
{
lcd_puts(“+”);
PrintAmpere((tmp1-tmp)*8);
}

_delay_ms(100);
}
return 0;
}

uint16_t ReadVoltage(uint16_t channel)
{
ADMUX = _BV(ADLAR) | _BV(REFS1) | _BV(REFS0) | (channel & 0×07);//Left Adjust
ADCSRA |= _BV(ADSC); // start conversion
while (ADCSRA & (1 << ADSC));
return ADCH;

}

void PrintVoltage(uint16_t voltage)
{

lcd_putc((voltage/1000)+48);
voltage%=1000;
lcd_putc((voltage/100)+48);
voltage%=100;
lcd_putc((voltage/10)+48);
lcd_puts(“.”);
lcd_putc((voltage%10)+48);
lcd_puts(“V”);
}

void PrintAmpere(uint16_t ampere)
{
lcd_putc((ampere/1000)+48);
ampere%=1000;
lcd_putc((ampere/100)+48);
ampere%=100;
lcd_putc((ampere/10)+48);
lcd_puts(“.”);
lcd_putc((ampere%10)+48);
lcd_puts(“A”);
}



Callibration and usage

  • Connect (via switch) a 6-30V DC supply to the voltage input. this is for running the meter including the LCD.
  • Connect +5V(from output of LM805) to any large pad in the bottomside, i.e, Vin(+) or Vout(+) anything and turn both presets until LCD shows 05.0V +000.0A .
  • Now connect the source supply from solar panel to any pad and derive the output from any other pad, if Amps is shown as -ve when load is connected, you simply need to reverse the wires of V_In and V_Out.

A picture of my prototype below.



Update:

New PCB here>  PCB design

Questions, comments or enquiries? Drop them below.
